Install Front Mounting Plates

1. NOTE: Front mounting brackets have bent tabs facing inward toward each other.

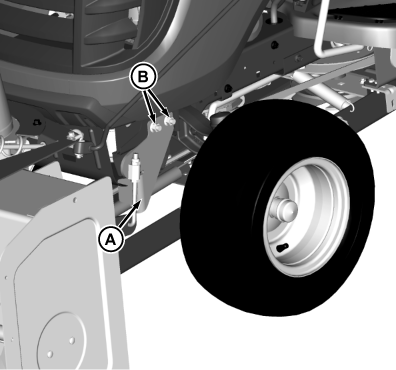

   MXT014392-UN-14AUG15

   A - Front Mounting Bracket

   B - Carriage Bolt, M10x25, Nut, M10

   Align left front mounting bracket (A) holes with left frame mounting bracket holes on machine.

---




2. Install two carriage bolts (B) from inside frame, and secure with two nuts (B).

3. Tighten hardware.

4. Repeat procedure for other side.
