Install Rear Mounting Plates

1.

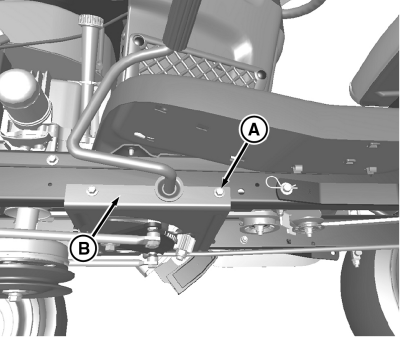

   MXT007216-UN-15MAY13

   A - Bolt

   B - Steering Support Plate

   Remove and discard bolt (A) that secures rear of steering support plate (B) to machine frame at left side of machine.

---




2.

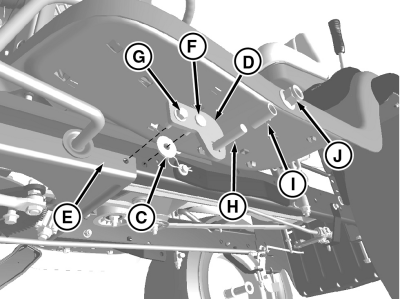

   MXT007217-UN-17MAY13

   C - Washer, M11x34 OD

   D - Mounting Plate, Rear

   E - Plate, Steering Support

   F - Carriage Bolt, M10x30

   G - Bolt, Flange, M8x25

   H - Carriage Bolt, M12x55

   I - Bushing, M12x30

   J - Locknut, Flange, M12

   Place washer (C), and rear mounting plate (D) on steering support plate (E) and machine frame then install carriage bolt (F). Install M10 flange nut on carriage bolt, but do not tighten.

---




3. Install flange bolt (G) through rear mounting plate hole and threaded hole in machine frame. Install M8 flange nut on bolt.

4. Tighten all hardware.

5. Install carriage bolt (H) through the square hole in mounting plate from the inside out. Install a bushing (I) over carriage bolt and secure with a flange locknut (J). Tighten hardware.

6. Repeat procedure for other side.
