Adjusting Lift Height

1. Park machine safely. (See Parking Safely in the SAFETY section.).

2. Raise and lock snowblower.

3. Measure from ground to bottom of scraper blade at both sides.

4. Lower snowblower to ground.

5.

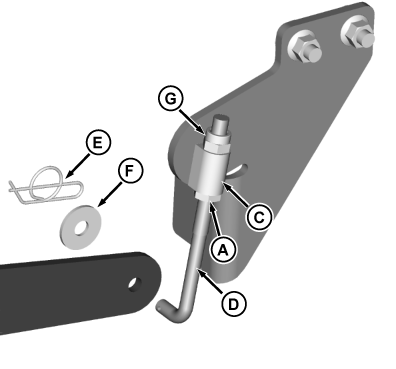

   MXT015235-UN-15JUL15

   A - Nut, Lower, M10

   B - Nut, Upper, M10

   C - Lift Link

   D - Lift Rod

   E - Cotter Locking Pin

   F - Washer, M10x30 OD

   Adjust lift height (each side):
   • To raise lift height, loosen nut (A) and tighten nut (B) at either side of the adjustable lift link (C).
   • To lower lift height, loosen nut (B) and tighten nut (A) at either side of the adjustable lift link (C).
   • For more range of adjustment, the adjustable lift link (C) on the adjustable lift rod (D) can be reversed.
   • Remove the locking cotter pin (E) and washer (F) securing the lift link to the lift arm. To allow the pivot block to be removed from the front bracket, disengage the lift arm and pivot the lift link. Remove locknut (B), reverse the lift link and assemble components.



---




6. Raise and lock snowblower.

7. Measure from ground to bottom of scraper blade at both sides.

8. Repeat steps, if necessary.
