Turning Discharge Chute

MXT007232-UN-15MAY13

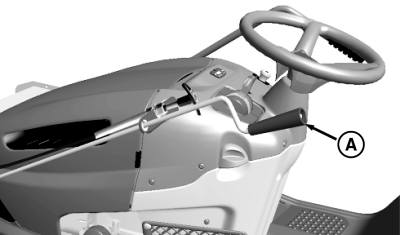

A - Discharge Chute Turning Handle

CAUTION: Avoid injury! Never direct discharge at bystanders or allow anyone in front of the unit. Change the discharge direction to avoid bystanders, buildings, and automobiles.

• Turn handle (A) counter-clockwise to rotate chute to the right.
• Turn handle (A) clockwise to rotate chute to the left.
