Raising and Lowering Snowblower

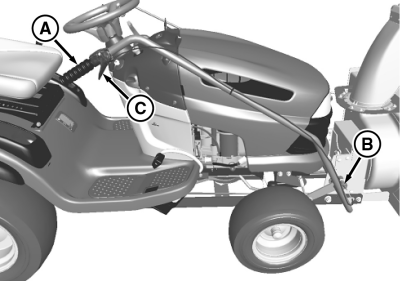

MXT007236-UN-15MAY13

A - Lift Rod Handle

B - Lift Lock Pin

C - Trigger

CAUTION: Avoid injury! Attachment can lower rapidly. Attachment is heavy and can crush.

Keep bystanders, especially children, away when lowering attachment.

Support raised attachment with a mechanical stop or lower completely to the ground before servicing.

• To raise snowblower: Push down on lift rod handle (A).
• To lock snowblower in raised / transport position: Push down on lift handle (A) until spring loaded lift lock pin (B) engages hole in snowblower housing.
• To lower snowblower: Push down on lift rod handle (A) slightly, squeeze trigger (C) to disengage locking pin, then slowly release pressure on lift rod handle.
