Replacing Scraper Blade

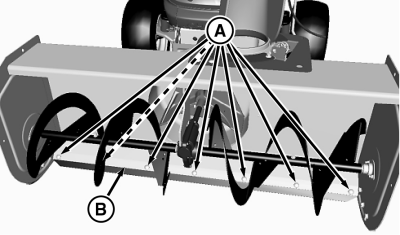

MXT007240-UN-15MAY13

A - Carriage Bolt, M8x20

B - Scraper Blade

Replace scraper blade when blade is bent, or blade edge is rough or worn. Scraper blade is not reversible.

1. Remove and retain seven carriage bolts (A), secured at the backside with M8 locknuts.

2. Remove and replace scraper blade (B).

3. Secure scraper blade with hardware removed earlier. Tighten hardware.
