Checking Gearbox Oil

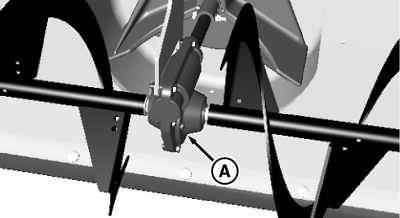

MXT007238-UN-06JUN13

A - Auger Gearbox Plug

The gearbox does not have serviceable components. However, there is a removable plug for checking gearbox oil level, and adding oil, if necessary.

To check gearbox oil levels:

1. This service should be performed with the snowblower removed from the machine.

2. With blower gearbox approximately level, remove plug (A). Oil level should be to the bottom of the check plug hole. Add, 80W- 90 GL-5 Gear Oil, if necessary.
