Checking Primary Belt Drive Tension
CAUTION: Avoid Injury! Snowblower rotating parts may continue
to rotate if primary drive belt tension is improperly adjusted.
Inspect snowblower rotating parts and adjust primary drive belt tension if necessary.

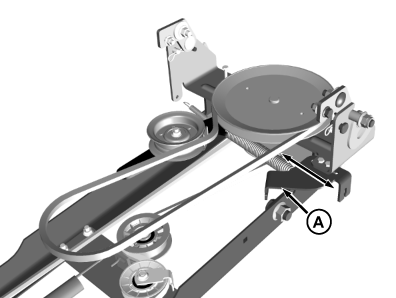

MXT015967-UN-30OCT15
A - Bracket, PTO Cable
The PTO cable bracket (A) on manual PTO models may require adjustment to achieve proper belt tension. After snowblower installation is complete check to make sure that the snowblower stops rotating when the PTO lever is moved to the disengaged position. Check to make sure that snowblower starts rotating when the PTO lever is moved to the engaged position. To decrease belt tension, move the bracket inward, toward the frame. To increase belt tension, move the bracket outward, away from the frame.|
OUO2004,0000D33-19-20151030 |
