Adjusting Skid Shoes

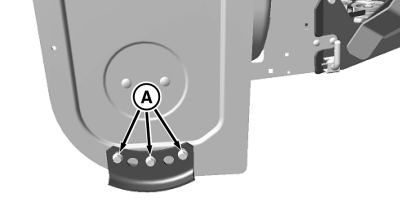

MXT007369
MXT007369-UN-06JUN13

A - Bolt

  1. NOTE: Before using snowblower on gravel or uneven surfaces, lower skid shoes fully. Both skid shoes must be in the same position.

    Park machine safely. (See Parking Safely in the Safety section.)

  2. Loosen bolts (A) on each skid shoe.

  3. To clear snow from a flat surface, lower skid shoes so that scraper blade is 2–3 mm (1/16–1/8 in.) above surface.

  4. To clear snow from a rough or a gravel surface, raise skid shoes so that scraper blade has maximum clearance.

  5. Tighten bolts.

TH84124,000014B-19-20130606
