Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.
   MXT014347-UN-09JUL15

   Picture Note: X570, X580, and X584


   MXT014711-UN-10JUN15

   Picture Note: X590

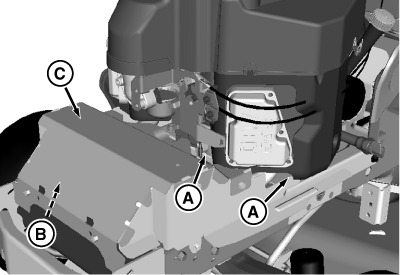

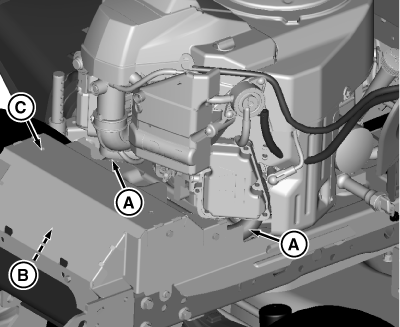

   Exhaust manifold (A), muffler pipe (B), muffler, and muffler shield (C).

---




2. NOTE: Inspect area around spark plugs on all models and clean out debris.


   MXT012544-UN-31OCT14

   Picture Note: X570, X580, and X584


   MXT011509-UN-31OCT14

   Picture Note: X590

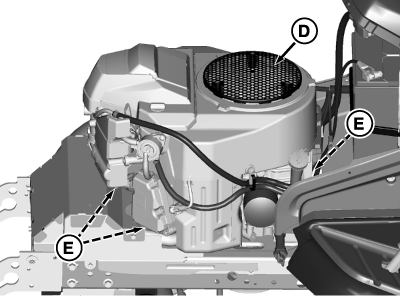

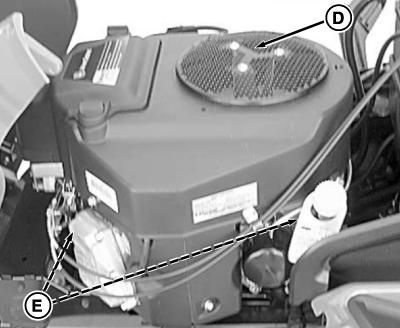

   Engine intake screen (D) and cooling fins (E).

---




3.
   MXT012543-UN-31OCT14

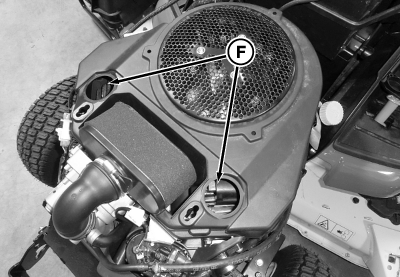

   X590: Remove air cleaner cover and remove debris through cleanout ports (F).

---




4.
   MXT014334-UN-15MAY15

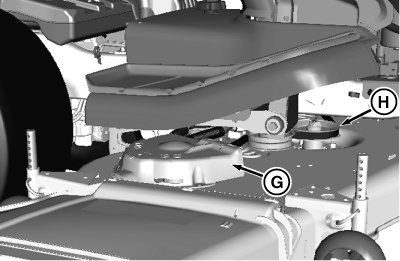

   Top of mower deck, under shields (G), including spindle (H) and belt areas.

---




5.
   MXAL46343-UN-05APR13

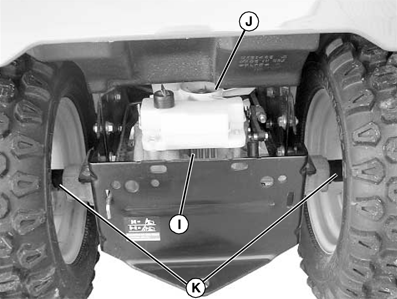

   On or near transmission (I), transmission fan (J), and driveline (K).

---




6.
   MXT018315-UN-07JUN16

   Picture Note: X584 shown

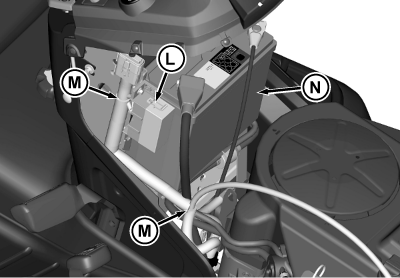

   On right side near fuse block (L), all wiring harnesses (M), and battery (N).

---
