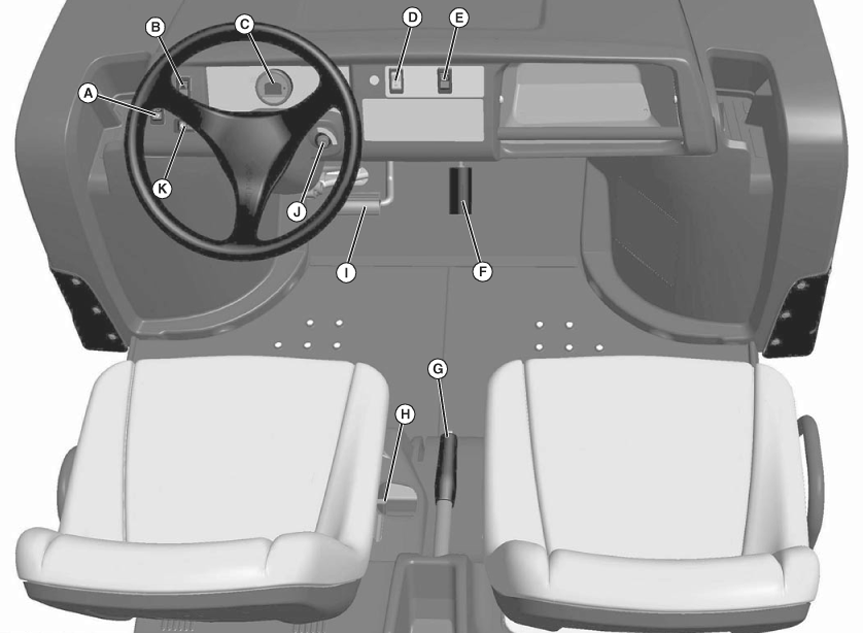

Operator Station Controls

MXAL47758-UN-12APR13

Some controls may not be installed on your machine.

A - Cargo Box Power Lift Switch

B - Hazard Switch

C - Charge Meter/Hour Meter

D - Directional Control Switch

E - Headlight Switch

F - Accelerator Pedal

G - Park Brake Lever

H - Service/Drive Switch

I - Foot Brake Pedal

J - Key Switch

K - Turn Signal Switch
