Loading the Cargo Box

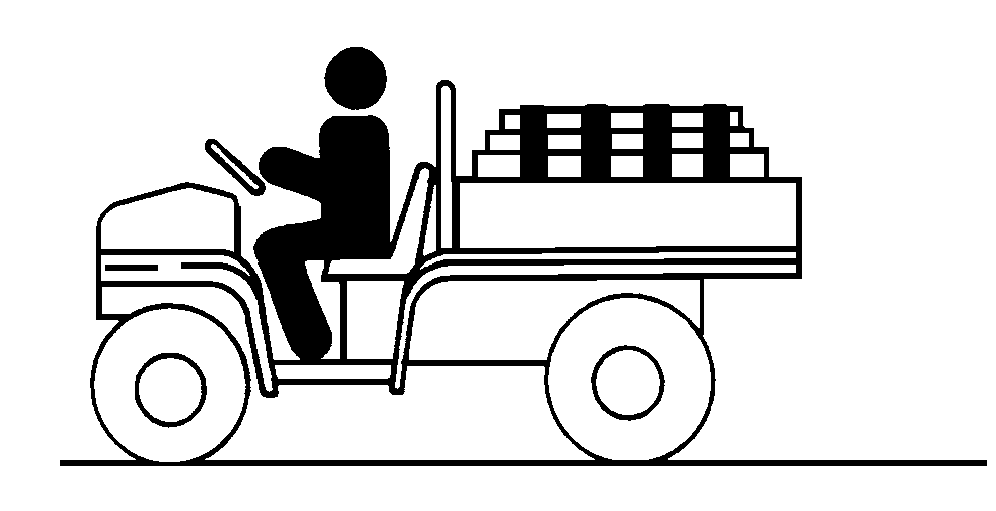

Avoid injury! The utility vehicle may become unstable if the cargo box is loaded incorrectly. Avoid loose and shifting loads or uneven loading of material.

• Do not load above height of load guard.
• Securely anchor all loads in cargo box.
• Do not load beyond maximum capacity.

MXAL47785-UN-12APR13

Maximum payload capacity on level terrain for the cargo box is:

• 227 kg (500 lb.)

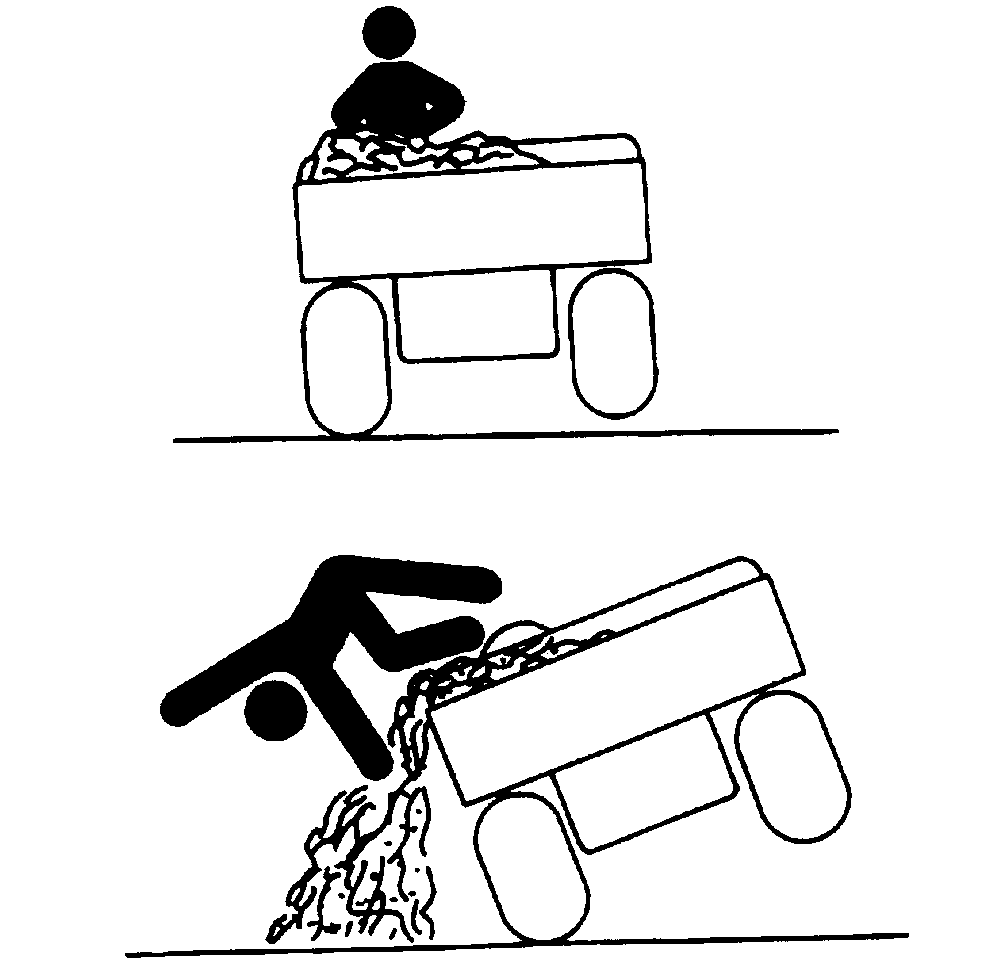

Reduce load by half when operating over rough, hilly, or steep terrain. Do not overload vehicle. Limit loads to those that can be safely controlled.

Reduce speed and exercise extreme caution when operating over rough, hilly, or steep terrain.

Securely anchor and evenly distribute loads in cargo box, when loading objects into vehicle. Shifting loads will affect stability.

Do not load above load guard.

MXAL47786-UN-12APR13

Because there is a big difference in weight between dry and wet sand, the only way of getting true weight of the load you are carrying is by using a scale.

Printed weight is normally on bagged and other material.

Box Volume Capacity

MXAL47787-UN-12APR13

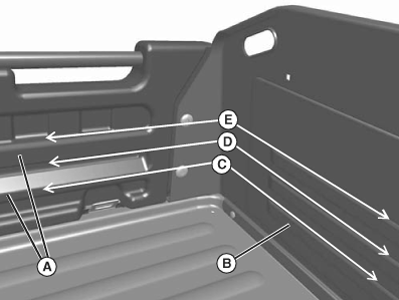

Use rub rails (A) in left and right side panels, and form beads (B) in cargo box front panel to determine cargo box volume.

• 10.1 cm (4 in.) load height (C) = 150 L (5.3 cu. ft.).
• 15.2 cm (6 in.) load height (D) = 226 L (8 cu. ft.).
• 20.3 cm (8 in.) load height (E) = 303 L (10.7 cu. ft.).

Use table below to determine height of common cargo box materials.

Material	Weight (lb/ft3 )	Capacity Height
Asphalt	45	8
Brick	120	3
Cement (Dry)	94	4
Sand (Dry)	100	4
Sand (Damp)	120	3
Sandstone (Broken)	94	4
Concrete (Set/Mix)	135	3
Soil (Dry/Loose)	78	5
Soil (Wet/Packed)	100	4
Clay (Dry/Lump)	67	5
Clay (Wet/Lump)	100	4
Fertilizer	60	6
Gravel (1/4—2 in.)	105	3
Turf/Sod	35	10
