Adjusting Standard Seat

1. Tip seat forward.

2. If seat is removed, install seat hardware in the correct slots in the bracket. Always use set of slots closest to center of vehicle when installing seat.


   MXAL47760-UN-12APR13

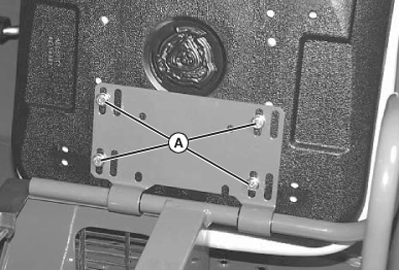

   Passenger seat shown.

   Hold onto seat and loosen cap screws (A).

---




3. Slide seat forward or rearward for desired position.

4. Tighten seat cap screws to specifications

   Seat Cap Screws	Torque	12.2 N·m (9 lb-ft)

   .
