Adjusting Driver Seat With Optional Lever System

  1. Never adjust seat while machine is moving. Stop machine before adjusting seat to prevent loss of machine control.

    Stop machine and move transaxle shift lever to the neutral position.

  2. Lock park brake.

  3. MXAL47761
    MXAL47761-UN-12APR13

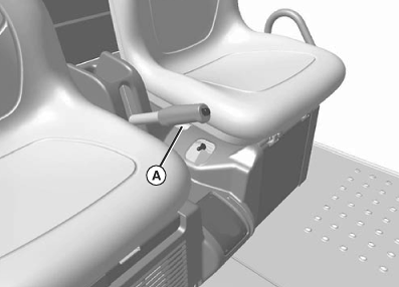

    Pull up on lever (A), and slide seat forward or rearward until seat locks in place.


  4. Release lever.

OUO1023,0000973-19-20130417
