Using the Directional Control Switch

Do not press the directional control switch while the vehicle is in motion. Always bring the vehicle to a full stop before pressing the directional control switch.

MXAL47763-UN-12APR13

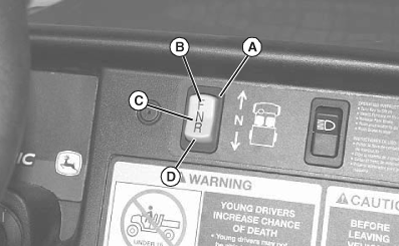

The directional control switch (A) is located on the dash panel. There are three positions:

• FORWARD: Press the switch forward to position (B).
• NEUTRAL: Press the switch into the middle position (C).
• REVERSE: Press the switch downward to position (D).
