Using the Service and Drive Switch

This utility vehicle is equipped with a two position service/drive toggle switch.

MXAL47765-UN-12APR13

MXAL47766-UN-12APR13

Service Position

When the service/drive switch is moved to the SERVICE position there is still electric battery voltage present in all vehicle electrical harnesses.

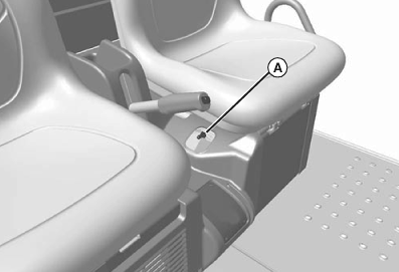

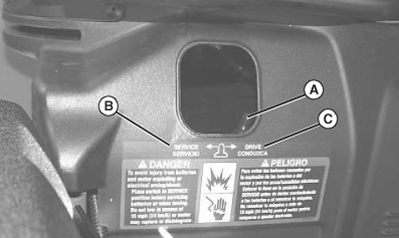

When the vehicle service/drive switch (A) is moved to the SERVICE position (B) the vehicle is disabled and prohibited from being driven.

The service/drive switch should be moved to the SERVICE position when:

• Performing any service function on the vehicle.
• The vehicle is not going to be in service for an extended period of time (one month or more).
• The vehicle is being towed.

Drive Position

When the vehicle service/drive switch (A) is moved to the DRIVE position (C) the vehicle controller is energized. When the key switch is turned to the ON “1” position, controls are energized and the vehicle is ready for normal operation.
