Using Park Brake

The park brake alarm will buzz if the machine is in gear and you try to move in forward or reverse before unlocking the park brake.


Locking the Park Brake:

  1. MXAL47767
    MXAL47767-UN-12APR13

    Push down on brake pedal to hold machine in place.

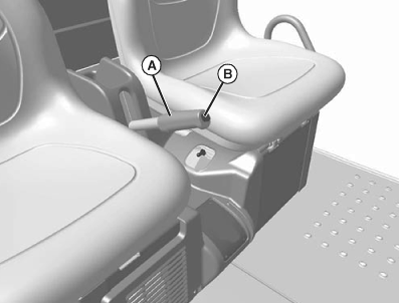

  2. Pull up on lever (A) and lock lever into position engaging park brake.


Unlocking the Park Brake:

  1. Push down on brake pedal to hold machine in place.

  2. Pull up on lever (A).

  3. Press button (B).

  4. Release lever down completely.
