Tightening Wheel Hardware

Front Wheel Bolts

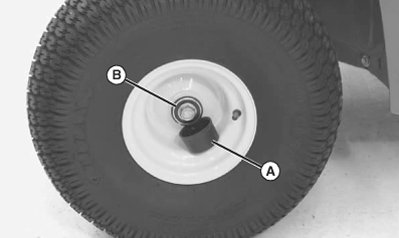

MXAL47842-UN-12APR13

• Remove dust cap (A).

Overtightening of front wheel bolt may result in bearing damage.

• Tighten flange front cap screws (B) to specifications.

  Front Wheel Bolt	Torque	88 N·m (65 lb-ft)

• Install dust cap.

Rear wheel Nuts

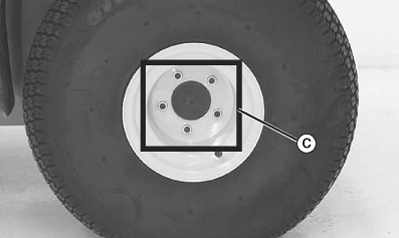

MXAL47843-UN-12APR13

• Tighten rear drive wheel nuts (C) alternately to specifications.

  Rear Drive Wheel Nuts	Torque	88 N·m (65 lb-ft)
