Lubricating Front King Pins

  1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

  2. Turn the key switch to the OFF “0” position.

  3. Press the directional control switch into the neutral (N) position.

  4. Lock park brake.

  5. Raise front of utility vehicle with a safe lifting device.

  6. MXAL47845
    MXAL47845-UN-12APR13

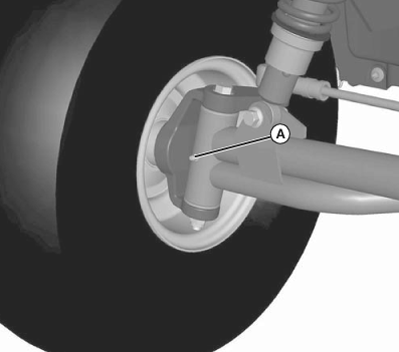

    Lubricate one grease fitting (A) on each king pin axle arm with the preferred grease or an equivalent.


  7. Lower vehicle.
