Removing and Installing Hood


Removing Hood

  1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

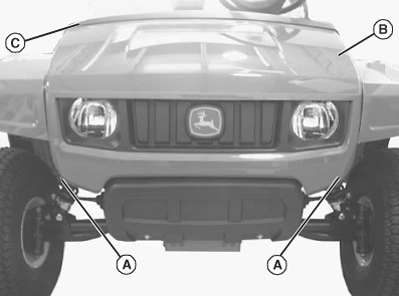

  2. MXAL47846
    MXAL47846-UN-12APR13

    Stand in front of vehicle and grasp hood near arrow marks (A). Pull out firmly.


  3. When removing hood (B), set hood in an upright position and not on top side of hood.

    Pull forward on hood (B) and remove hood from under dash panel (C).


Installing Hood

  1. Install hood (B) under dash panel (C).

  2. Pivot hood downward, pushing near arrows (A) to secure rubber retainers on hood tabs onto molded retainers on front fenders.

OUO1023,00009A0-19-20130417
