Replacing Cargo Box Tailgate Bushings

  1. MXAL47847
    MXAL47847-UN-12APR13

    Remove the cargo box tailgate (See Removing the Tailgate in OPERATING).

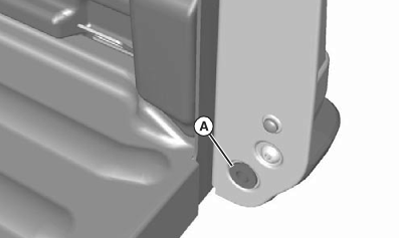

  2. Remove snapfit bushing (A) from both sides of cargo box.

  3. Replace bushings and reinstall the tailgate.

OUO1023,00009A1-19-20130417
