Attaching Warning Light Plug

CAUTION: When transporting machine on a road or highway at night or during the day, use lights and devices for adequate warning to operators of other vehicles. In this regard, check local governmental regulations. Various safety lights and devices are available from your John Deere dealer.

NOTE: Field installation of 7-Terminal Auxiliary Electric Kit is required, if towing tractor is not equipped with an electrical outlet.

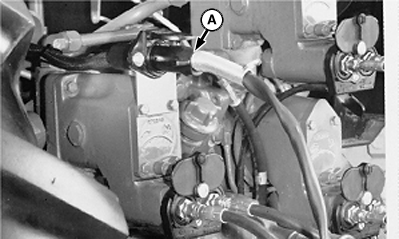

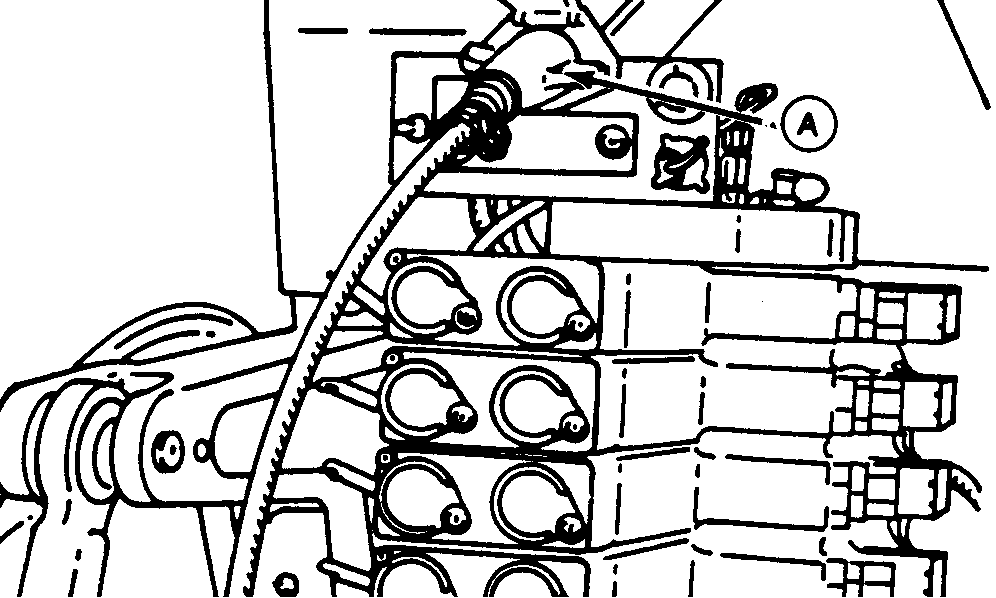

1. Attach warning light plug (A) to tractor outlet socket.

2. To obtain maximum warning, be sure warning lights, reflectors and SMV sign are clean.

A-Warning Light Plug

AG,OUO6056,214 -19-26MAY99-1/1
