Attaching Machine With Lift-Assist to 7000 Series Tractor

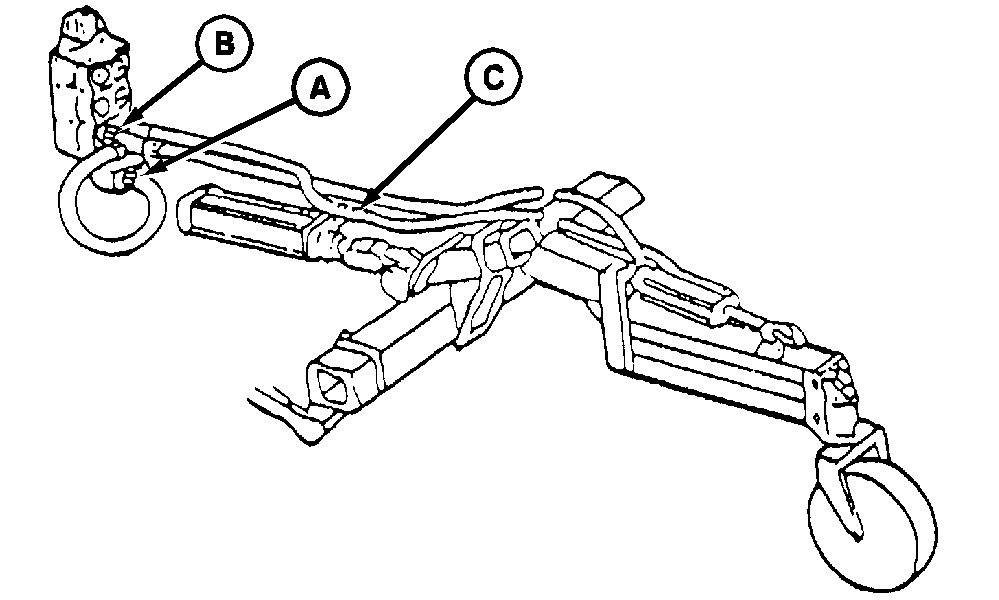

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene can result. Doctors unfamiliar with this type of injury can call the Deere & Company Medical Department in Moline, Illinois, or other knowledgeable source. 1. Back tractor to implement using hitch control lever to attach implement. NOTE: If center link cylinder must be adjusted, place SCV No. 1 lever in "float" and use cylinder stroke control to pull cylinder out and tip quick-coupler back. Retract stroke control SCV No. 1 lever can now be used to shorten center link cylinder for final hook-up adjustment. 2. Lock quick-coupler latches. 3. Raise parking stands and lower implement to the ground by moving hitch control to full down position. 4. Turn tractor OFF. 5. Connect the three implement hydraulic hoses to tractor auxiliary quick-coupler (A), SCV No. 1 (B) and center link cylinder (C). 6. Connect seven-pin warning light harness at back of tractor. |
|
CAUTION:
Escaping fluid under pressure can penetrate the skin causing serious injury to you or others. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.
AG,OUO6056,218 -19-26MAY99-1/2 |
|
7. Disable electric hitch valve by pulling 10 AMP fuse No. 5 (A) from fuse box socket labeled HCU and store in No. 11 fuse box socket (B). NOTE: Raising and lowering of the implement is now done with SCV No. 1 lever as single lever control.
|
|
AG,OUO6056,218 -19-26MAY99-2/2 |
