Detaching Machine With Lift-Assist From 7000 Series Tractor

1. Lower implement to ground by using SCV No. 1 lever.

CAUTION: Serious injury to you or others can occur if you attempt to disconnect hydraulic hoses under pressure. Relieve pressure before disconnecting hydraulic hoses.

2. Place SCV No. 1 lever in float position to relieve pressure in center link cylinder.

3. Turn OFF tractor.

4. Disconnect seven-pin warning light harness and place in storage receptacle.

AG,OUO6056,222 -19-26MAY99-1/4

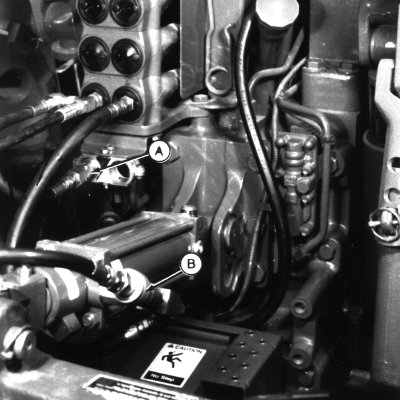

5. Relieve hydraulic pressure and disconnect the two implement hydraulic hoses from the tractor auxiliary quick-coupler (A), and center link cylinder (B).

6. Unlock quick-coupler latches.

A-Auxiliary Quick-Coupler
B-Center Link Cylinder

AG,OUO6056,222 -19-26MAY99-2/4

7. Enable electric hitch by removing 10 AMP fuse from storage position in No. 11 fuse box socket (B) and insert into No. 5 fuse box socket labeled HCU (A).

8. Start tractor and raise the machine slightly using hitch control lever.

9. Lower parking stands and lower machine to the ground.

10. Detach machine from tractor.

11. Using SCV No. 1 lever, retract center link cylinder fully and place lever in float position.

A-Fuse Box Socket No. 5
B-Fuse Box Socket No. 11

AG,OUO6056,222 -19-26MAY99-3/4

12. Disconnect hydraulic hose (A) from SCV No. 1 and connect to coupler (B) to lock center link cylinder (if left on tractor).

A-Hydraulic Hose
B-Hydrualic Coupler
