Detaching Machine With Lift-Assist From 8000 Series Tractor

1. Lower implement to ground by using SCV No. 1 lever.

2. Place SCV No. 1 in "float" position to relieve pressure.

3. Turn OFF tractor.

4. Disconnect nine-pin implement connector (A) and install dust plug.

5. Disconnect seven-pin warning light connector (D) and place in storage receptacle.

CAUTION: Serious injury to you or others can occur if you attempt to disconnect hydraulic hoses under pressure. Relieve pressure before disconnecting hydraulic hoses.

6. Relieve hydraulic pressure and disconnect the two implement hydraulic hoses from the tractor auxiliary quick-coupler (B), and center link cylinder (C).

7. Unlock quick-coupler latches.

8. Start tractor and raise the machine slightly using hitch control lever.

9. Lower parking stands and lower machine to the ground.

10. Detach machine from tractor.

11. Using SCV No. 1 switch, retract center link cylinder fully.

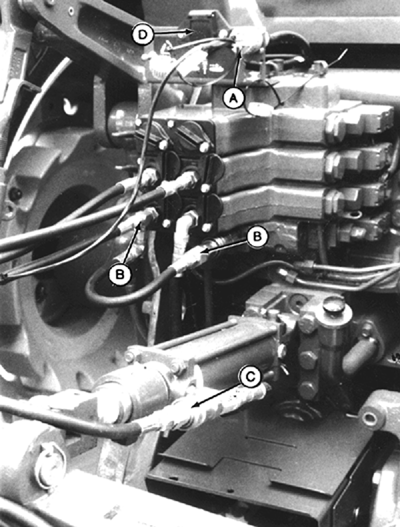

A-Nine-pin Implement Connector
B-Auxiliary Quick-Coupler
C-Center Link Cylinder
D-Seven-pin Warning Light Connector

AG,OUO6056,223 -19-26MAY99-1/2

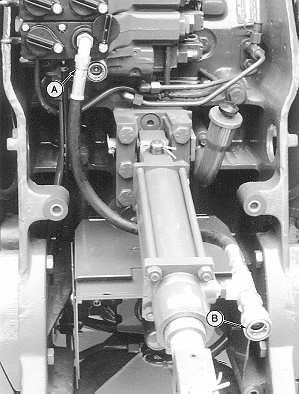

12. Cap coupler (B) or disconnect hydraulic hose (A) from SCV No. 1 and connect to coupler to lock center link cylinder (if left on tractor).

A-Hydraulic Hose
B-Hydraulic Coupler

AG,OUO6056,223 -19-26MAY99-2/2
