Control Switches for Machine With Lift-Assist Wheel-8000 Series Tractors

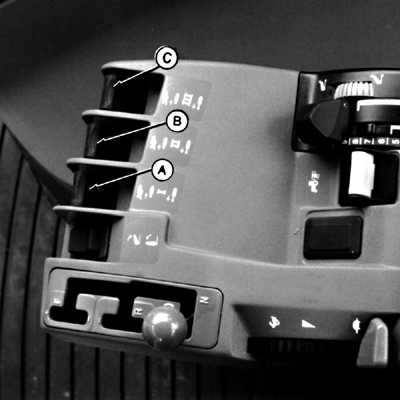

Raise and lower machine with SCV No. 1 switch (A). Pull switch rearward to raise machine and push switch forward to lower machine. The SCV No. 2 (B) or No. 3 (C) SCV switch is used to raise wings to a slight angle for turning at end of rows, and/or for folding wings. Pull SCV No. 1 rearward to detent position (until click is felt) when transporting machine. Push SCV No. 1 switch forward to neutral position for field operation.

A-SCV Switch No. 1
B-SCV Switch No. 2
C-SCV Switch No. 3

AG,OUO6056,225 -19-26MAY99-1/1
