Wing Flotation

IMPORTANT: Machine damage can occur if cap screws are improperly adjusted. Cap screws must be adjusted to the same length.

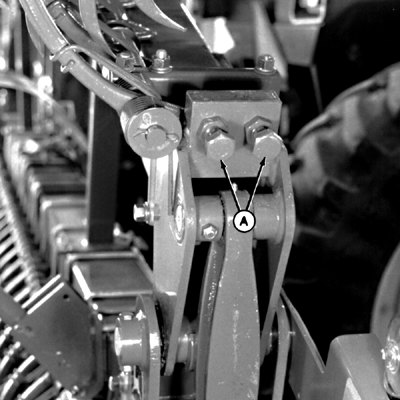

To allow wings to float down as well as up, turn the cap screws (A) in. Raise the wings to adjust cap screws. Tighten locknuts. (See Torque Chart.)

Wing frame gauge wheels are required.

A-Adjustment Cap Screws
