Adjusting Lift-Assist Wheel

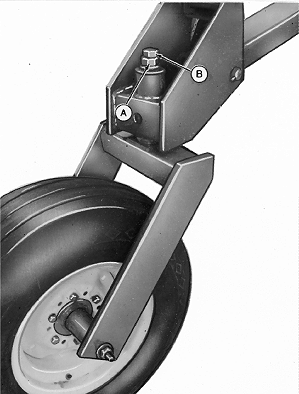

While lift-assist wheel is in contact with the ground, nuts (A) and (B) may need to be adjusted to eliminate wheel wobble. Adjust as follows:

1. Tighten nut (A) against washers until all parts are just touching.

2. Tighten nut and additional one-half turn; then tighten lock jam nut (B).

A-Nut
B-Jam Nut

AG,OUO6056,230 -19-26MAY99-1/1
