Tightening Lift-Assist Axle Nut
Tighten the nut (A) periodically to specification.
Specification
|
Axle Nut
-Torque
|
230 N·m
|
(170 lb-ft)
|
When cap screw is tight there should be a slight drag on wheel bearings. To adjust bearings, loosen axle bolt and turn hex nuts on inside of wheel yoke. Before checking bearing adjustment, tighten axle bolt.

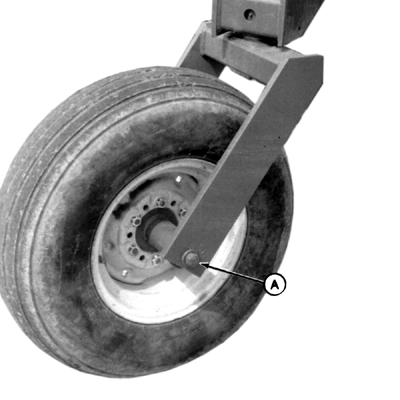

A-Axle Nut
|
|
|
|
AG,OUO6056,231 -19-26MAY99-1/1
|
|
