Hitch Pins and Spacers-Category 2

CAUTION: Before attaching machine to tractor, hitch pins, and spacers must match hitch configuration of your tractor. Machine can fall causing serious injury or death to you or others.

IMPORTANT: Tighten all hitch and mast brackets, cap screws, and U-bolts after the first 10-15 hours of operation. Tighten 5/8 in. hardware to 230 N·m (170 lb-ft) and 3/4 in. hardware to 407 N·m (300 lb-ft) as shown on torque value chart in this manual.

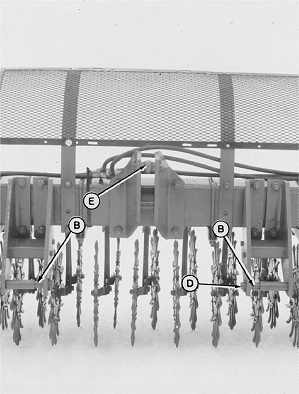

A-Mast Spacer
B-Spacer
C-Sleeve
D-Hitch Pin
E-Mast Ball and Spacer

AG,OUO6056,236 -19-26MAY99-1/1
