Using External Raise/Lower Switch

CAUTION: To prevent serious injury or death to you or others caused by tractor movement, be sure transmission is in "PARK" before using external raise/lower switch (A).

Stay clear of potential interference points when using switch. Some potential interference points are between: hitch components and implement (B), hitch components and tractor (C), implement and tractor tires (D), and implement and ground.

External raise/lower switch allows raising and lowering rockshaft from rear of tractor. Switch is locked in its center position. Pull outward and hold switch up to raise, or down to lower. To stop, let switch back to its center position.

While external raise/lower switch is used, rockshaft control system is "reset". To enable system, move rockshaft control lever or raise/lower limit switch. (See Rockshaft Control System Reset in this section.)

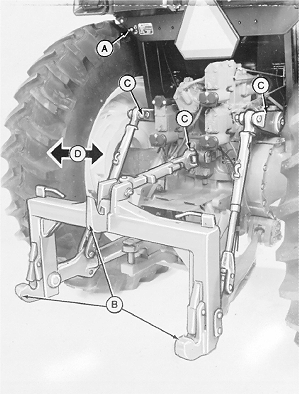

A-External Raise/Lower Switch
B-Hitch Component/Implement Interference Point
C-Hitch Component/Tractor Interference Point
D-Implement/Tractor Tire Interference Point
