Attaching Machine to Tractor With Quick-Coupler

CAUTION: Machine can fall causing serious injury or death to you or others. Before attaching machine to tractor be sure hitch pins and spacers are completely assembled to match the hitch configuration of your tractor. (See Preparing the Machine section.)

IMPORTANT: Damage to tractor cab can occur if center link is improperly adjusted. Raise machine slowly and check that center link is adjusted long enough to prevent machine from coming in contact with tractor cab when machine is in raised and folded position.

1. Lower coupler to allow jaws to pass under machine mast spacers (A) and hitch pins (B).

2. Back tractor up to machine and raise coupler to firmly seat coupler jaws (C).

3. Lock latch levers (D). The spring loaded latches in lower coupler jaws must be extended above hitch pins.

4. Raise parking stand(s).

5. Plug implement warning light cable into tractor electrical outlet. See Attaching Warning Light Plug in this section.

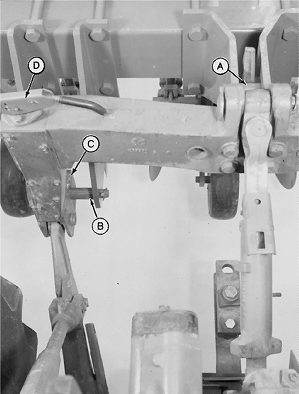

A-Mast Spacers
B-Hitch Pins
C-Coupler Jaws
D-Latch Levers
