IMPORTANT: Damage to tractor cab can occur if frame gauge wheels are improperly positioned. Raise machine slowly and check that frame gauge wheels do not contact cab when machine is in raised or folded position.

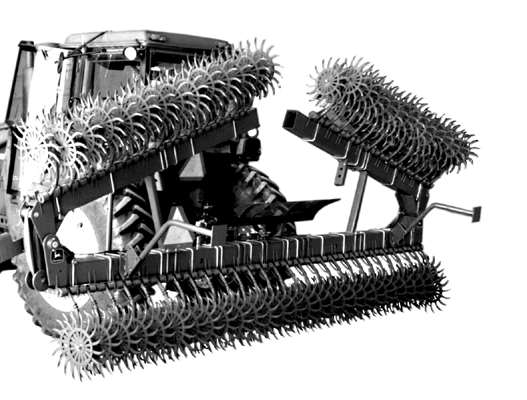

1. Raise machine.

CAUTION: To help prevent serious injury or death to you or others, never raise wings to transport position or lower wings while machine is in motion. Stay clear of folding sections during raising or lowering.

IMPORTANT: To avoid machine damage raise machine off ground before folding or unfolding wings. Raise wings level with center frame before lowering machine to ground. NEVER lower wings below horizontal when turning.

2. Fold wings. They must rest on their stops.

3. Do not exceed 10 mph (16 km/h) and KNOW the transport height and width of your machine.

NOTE: The lighting enhancement module is attached to the rearside of the left-hand red warning light bracket.

A lighting enhancement module has been incorporated into this machine's lighting circuit. This module causes the red tail lights to function as turn signals. During normal operation, both amber warning lights will flash in unison at high intensity, and both red tail lamps will illuminate steady at low intensity. When a turn is signaled, the red tail lamp in the direction of the turn will flash at high intensity and in unison with the amber warning lamp. The opposite side amber and red lamps will illuminate steady at high intensity.

AG,OUO6056,499 -19-10JUN99-1/1
