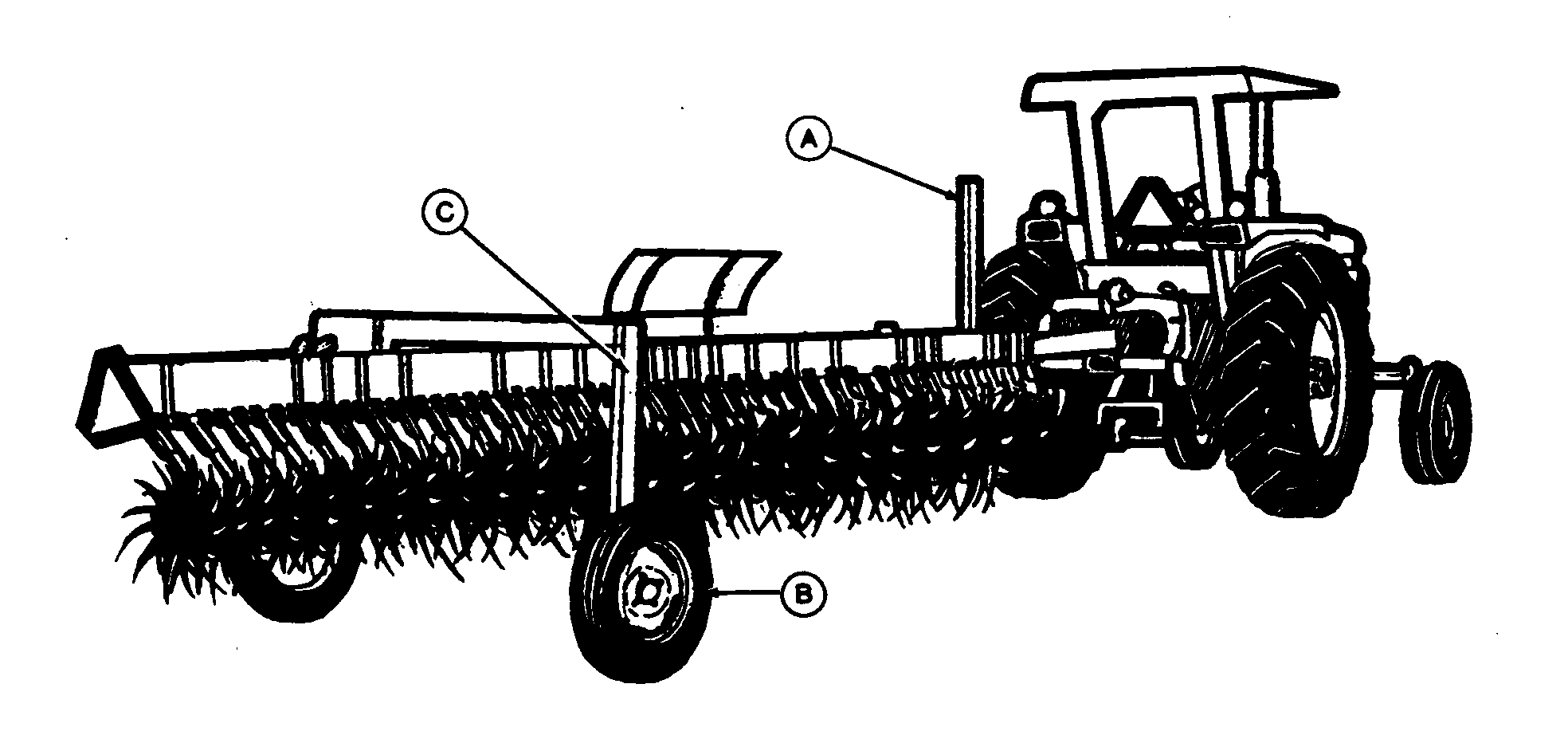

A-Storage Stand

B-Gauge Wheels

C-Transport Wheel Legs

D-Drawbar

CAUTION: When transporting the machine on a road or highway at night or during the day, use lights and devices for adequate warning to the operators of other vehicles. In this regard, check local governmental regulations. Various safety lights and devices are available from your John Deere dealer.

1. Lower the transport wheel legs (C) (with machine in the raised position).

2. Move the gauge wheels (B) to transport wheel legs.

3. Lower storage stand (A). Lower machine.

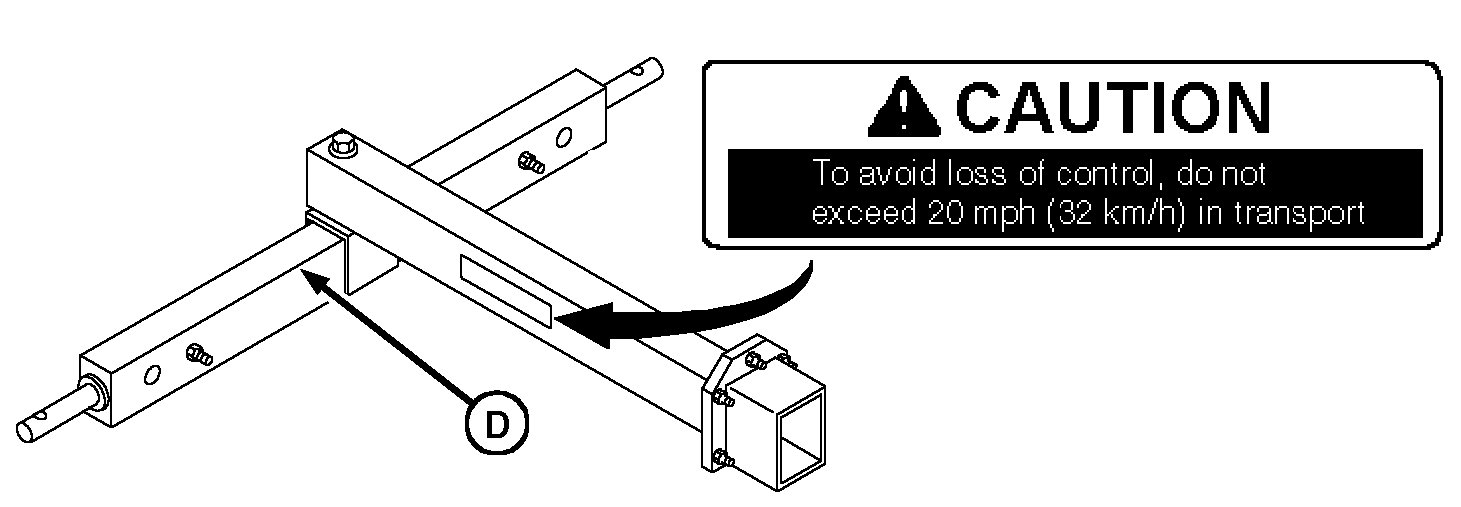

4. Extend tongue and turn drawbar (D) to lowered position.

5. Detach tractor from field hitch and attach to transport hitch.

6. Raise storage stand.

7. Check that the SMV emblem and reflectors are clean and in place.

8. Plug warning light(s) connector in tractor outlet.

9. DO NOT exceed 32 kmh (20 mph).

AG,OUO6056,500 -19-10JUN99-1/1
