Determine Front Ballast

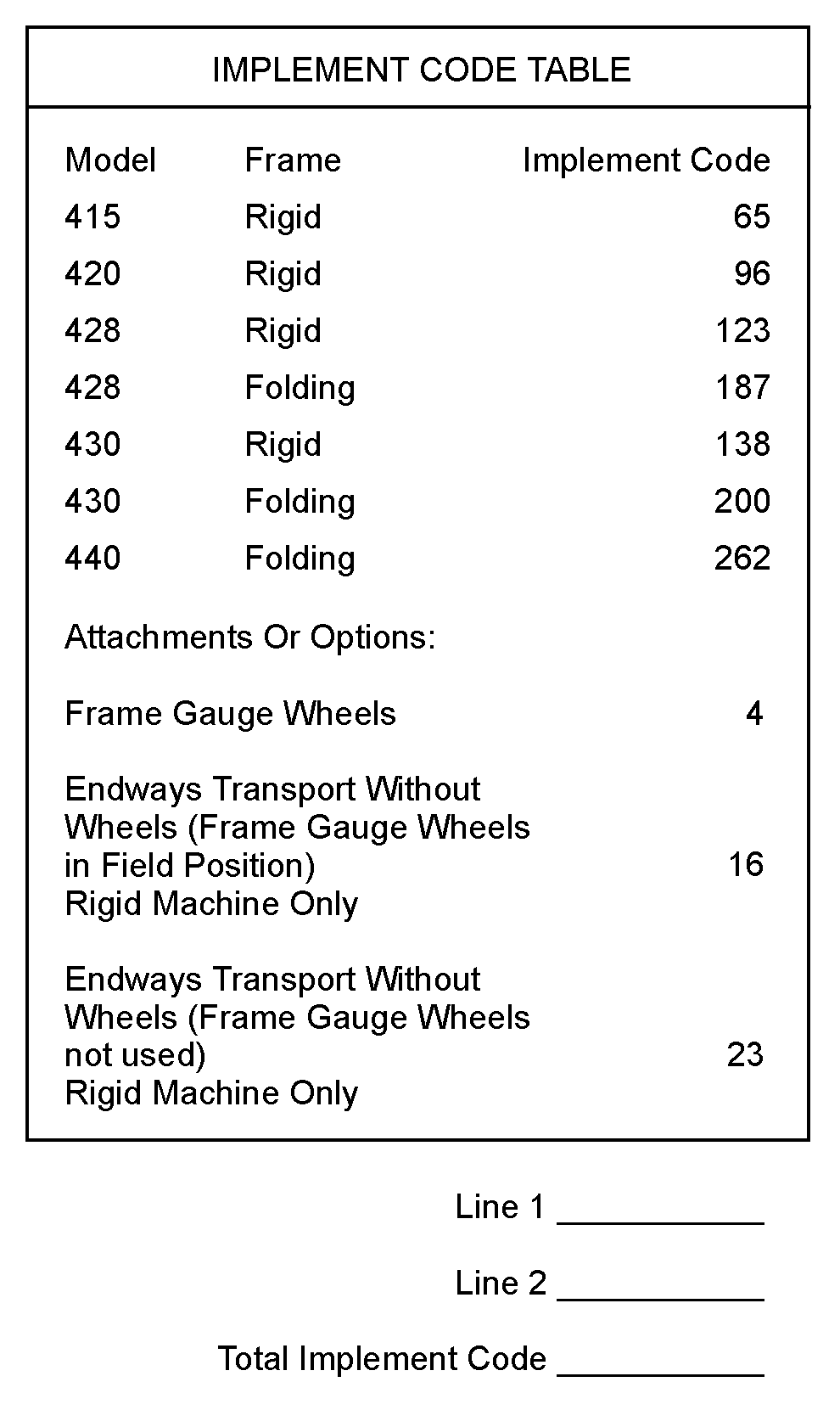

Step 1-Find the size of your machine in the table at the right and enter its implement Code on Line 1.

Step 2-Enter an Implement Code for each attachment or option used on your machine, on Line 2.

Step 3-Add Implement code of machine and Implement Code(s) for each attachment used to obtain the Total Implement Code.

Step 4-Refer to tractor Operator's Manual to determine required tractor front ballast.

N42168KH

AG,OUO6056,527 -19-15JUN99-1/2

causym CAUTION: Loss of steering control can cause serious injury or death to you or others. To maintain steering control when lift-assist wheel is used, maximum front ballast is required.

IMPORTANT: If the total implement code exceeds the maximum implement code listed for a particular tractor model, the implement-attachment combination is not recommended for that tractor.

The total load on any tractor wheel due to the weight of the implement-attachment combination and tractor equipment, should not exceed the carrying capacity of the tractor tires.

Refer to tractor Operator's Manual for weight limitations applicable to your tractor and tires.

NOTE: Ballast recommendations provide for adequate transport stability at recommended speeds. Additional front ballast may be required for satisfactory field operation due to sudden or extreme forces on the tractor hitch, which can occur when removing machine from the ground and turning at row ends, or during field transport over very rough terrain.

If the total implement code exceeds the highest number listed in the tractor Operator's Manual, the lift-assist wheel attachment may allow the use of the implement on the tractor.
