Leveling Machine Frame

1. Adjust lift links (A) to level frame.

2. Adjust tractor depth stop, as necessary. (See Control Levers Without Lift-Assist Wheel in this section.)

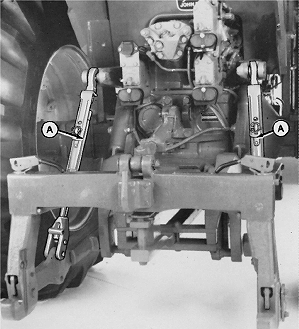

A-Lift Link

AG,OUO6056,529 -19-15JUN99-1/2

3. Adjust center link (B) or cylinder (C) length as necessary to make front face of frame perpendicular to ground in field position.

IMPORTANT: Damage to tractor cab can occur if frame gauge wheels are improperly positioned. Raise machine slowly and check that frame gauge wheels do not contact cab when machine is in raised and folded position.

B-Center Link
C-Center Link Cylinder
