Control Levers for Machine With Lift-Assist Wheel-4555/60, 4755/60, 4955/60 and 7000 Series Tractors With Electronic Hitch

Raise and lower with rockshaft control switch. Pull SCV No. 1 (A) rearward into clip for transporting. SCV No. 2 (B) or SCV No. 3 (C) is used to raise wings to a slight angle for turning at end of rows, and for folding or transporting. Position this lever in neutral position for field operation.

Frame height is maintained with frame gauge wheels.

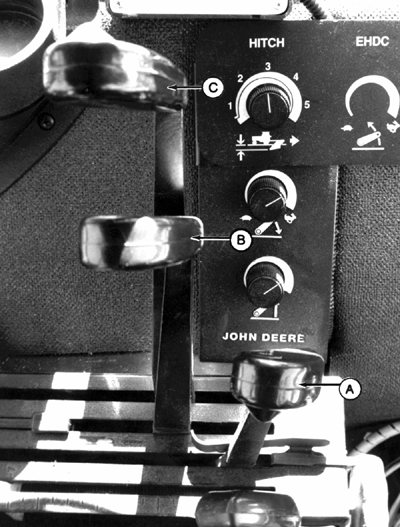

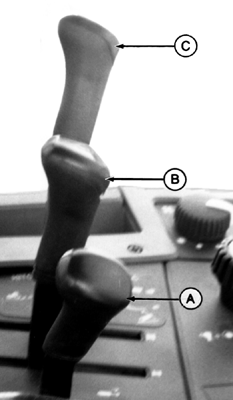

A-SCV Lever No. 1
B-SCV Lever No. 2
C-SCV Lever No. 3

NXM,OM518,OP5AA -19-12AUG97-1/1
