Sway Blocks

When using the V-Ripper with a four-wheel drive tractor or tracked tractor with a category 3 hitch, it may be desirable to place the sway blocks (A) and bumpers in the 3N position for some side sway so minor setting corrections do not affect the V-Ripper's performance.

NOTE: Refer to your tractor Operator's Manual for additional information.

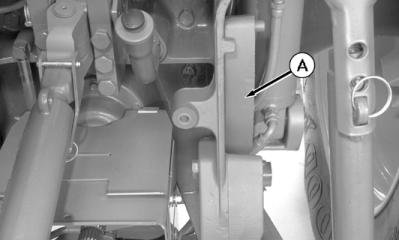

A-Sway Blocks

AG,OUO1011,1330 -19-28SEP99-1/1
