Detaching Integral V-Ripper (With Support Stands)

causym CAUTION: The V-Ripper is heavy. Avoid serious injury or death to you or others due to V-Ripper detaching from tractor and falling forward on you. Always stand behind V-Ripper when raising or lowering support stands (A).

IMPORTANT: When lowering the V-Ripper onto a hard surface, lower it slowly to help prevent damage to the standard points.

1. Lower V-Ripper 25 to 50 mm (1 to 2 in.) above ground.

2. Lower support stands (A) to ground.

3. Lower V-Ripper to ground.

4. Detach implement warning lights.

5. Detach V-Ripper from tractor and drive tractor forward.

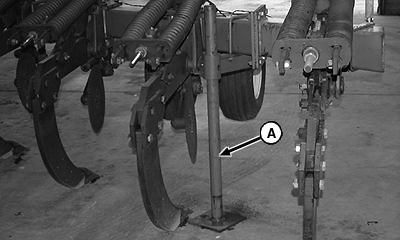

A-Support Stand

N39083
N49962

AG,OUO1011,1344 -19-28SEP99-1/1
