Adjusting Cushion-Trip Standard

1. Loosen cap screw (E). Remove cap screws from current mounting position (B, C or D).

2. Adjust shank (A) to desired position and replace cap screws. Tighten top and bottom nuts to specifications.

Specification

Top Nut -Torque 305 N·m (225 lb-ft)
Bottom Nut -Torque 217 N·m (160 lb-ft)

3. Snug cap screw (E).

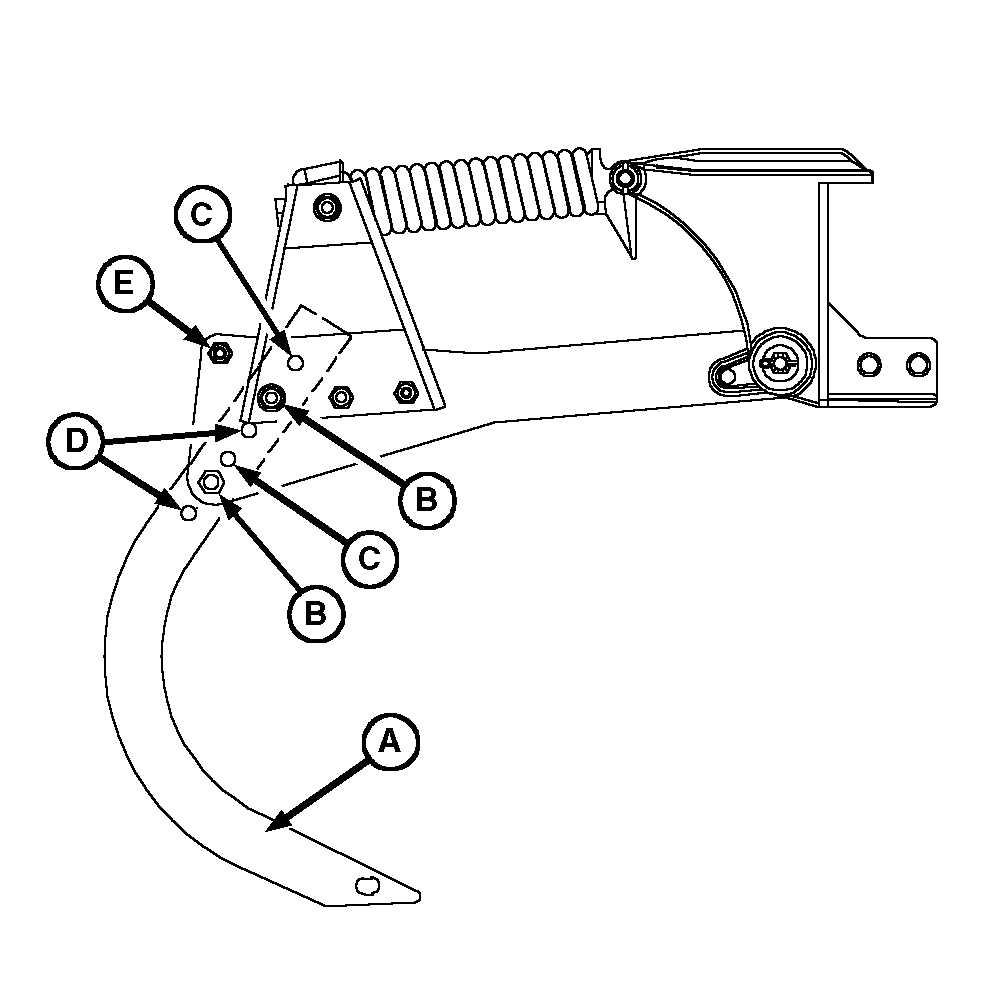

A-Shank
B-Center Position
C-Lower Position
D-Upper Position
E-Cap Screw

N50991

AG,OUO6018,637 -19-04OCT99-1/1
