Integral V-Rippers

CAUTION: Do not use tractor equipped with rear tires smaller than 18.4 x 38 because of insufficient transport clearance which can cause points to come in contact with the ground, resulting in serious injury to you or others. Always transport 11 or 13 standard V-Rippers on a trailer or implement carrier.

CAUTION: Maximum transport speed for V-Ripper is 16 km/h (10 mph). Faster speed may result in loss of tractor control if an outer standard contacts the ground due to uneven ground contour and can cause serious injury or death to you or others.

Never travel at any speed which does not permit adequate control of steering and stopping. Inadequate control of steering and stopping can cause serious injury or death to you or others.

When transporting the V-Ripper on a road or highway at night or during the day, use lights and devices for adequate warning to operators of other vehicles. In this regard, check local governmental regulations for proper use. A machine which is not properly lit can cause an accident, which can result in serious injury or death to you or others. Various safety lights and devices are available from your John Deere dealer.

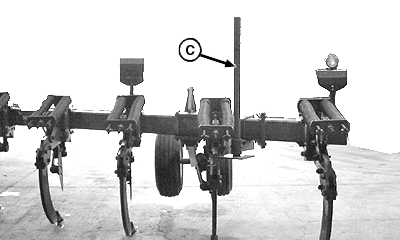

2. Raise support stands (C), if equipped, into transport position.

A-Shift Link Outside Dimension
B-Shift Link Center Dimension
C-Support Stand

NXN,915VR,L1 -19-02OCT96-1/1
