Installing Lever Lock Clip (55-60 Series Tractors)

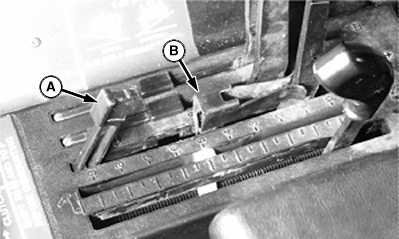

1. Lift float lock-out stop (A).

2. Squeeze sides of lock clip (B) and insert into groove as shown.


A-Float Lock-Out Stop
B-Lock Clip

N42122FD

AG,OUO1074,434 -19-22FEB00-1/2

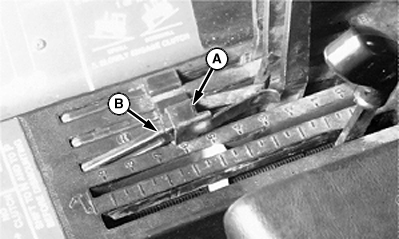

3. Slide lock clip (A) over lock-out stop (B).

4. Push lock-out stop and lock clip down.

5. Push handle forward to retain clip in proper position.


A-Lock Clip
B-Lock-Out Stop

N42122FE
N42122FG
N42122FH

AG,OUO1074,434 -19-22FEB00-2/2
