Checking Grass Seed Feed Shaft

IMPORTANT: Avoid deterioration of rubber tubes by preventing contact with petroleum products.

1. Before adding seed, raise openers to disengage clutch.

AG,OUO1074,449 -19-22FEB00-1/2

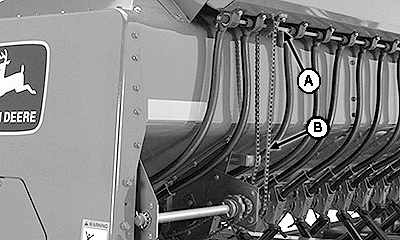

2. Turn grass seed feed shaft (A) in direction of normal travel.

3. If shaft turns hard, loosen moving parts with a safe solvent. Remove chain (B) as necessary.

A-Feed Shaft
B-Chain

AG,OUO1074,449 -19-22FEB00-2/2
