Fertilizer Drive Settings

IMPORTANT: To attain proper fertilizer drive speeds, set speed selectors (A) so desired digits are just outside the gear case and NOT the rubber seal. Line up mark with edge of cover.

NOTE: If unsure of setting, remove cover to check gear position.

If equipped with 1565 Separate Placement Box, set both transmissions to desired settings.

NOTE: Disengage gears when not distributing fertilizer.

A graduated increase in speed (from slow to fast) is made with the gear case speed selector (A). Turn lock (C) vertical, then pull out knob (B) to disengage gears. Move speed selectors to the "Gear Box Setting" as shown on the Fertilizer Rate Charts in this section for your desired kilograms per hectare (pounds per acre).

Push knob in and turn lock horizontal to engage gears.

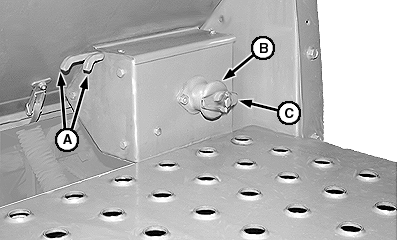

A-Speed Selector
B-Knob
C-Lock

AG,OUO1074,466 -19-22FEB00-1/1
