Detaching Drill from Tractor

CAUTION: Serious personal injury can result if you attempt to disconnect hydraulic hoses under pressure.

Tractors with Mechanical SCV Controls: Shut off tractor engine and work levers back and forth before disconnecting hoses to prevent a sudden accident that could cause severe injury to yourself.

Tractors with Electro/Hydraulic SCV Controls: Place SCV controls in "float" position before disconnecting hoses to prevent a sudden accident that could cause severe injury to yourself.

1. Lower openers to ground.

2. Tractors with Mechanical SCV Controls: Shut off tractor engine and work levers back and forth.

Tractors with Electro/Hydraulic SCV Controls: Place SCV controls in "float" position before disconnecting hoses.

AG,OUO1074,490 -19-22FEB00-1/3

3. Disconnect hydraulic hoses (A) from tractor.

4. Lower storage stand(s) or jack to ground.

5. Detach warning light plug from tractor.

CAUTION: To help prevent personal injury caused by unexpected movement of machine:

Park machine on level surface.

Block drill tires.

Be sure no upward force exists at hitch connection before removing hitch pin.

6. Caster and Simple Hitch: Remove hitch pin and safety chain to separate tractor from drill.

Two-Point Hitch: Lower parking stands to ground and detach drill from tractor.

A-Hydraulic Hoses

AG,OUO1074,490 -19-22FEB00-2/3

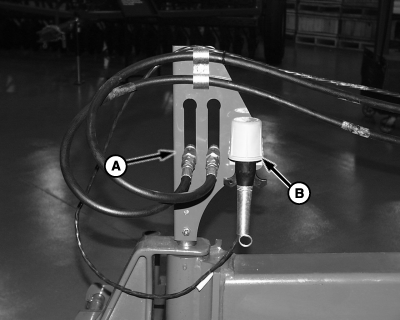

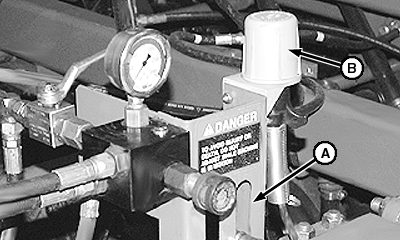

7. Store hydraulic hoses in bracket (A) and warning light plug in receptacle (B).

A-Bracket
B-Receptacle

AG,OUO1074,490 -19-22FEB00-3/3
