1. Remove feed shaft from drill.
2. Slide wheel off shaft.
3. Install new feed wheel.
AG,OUO1074,556 -19-22FEB00-1/2

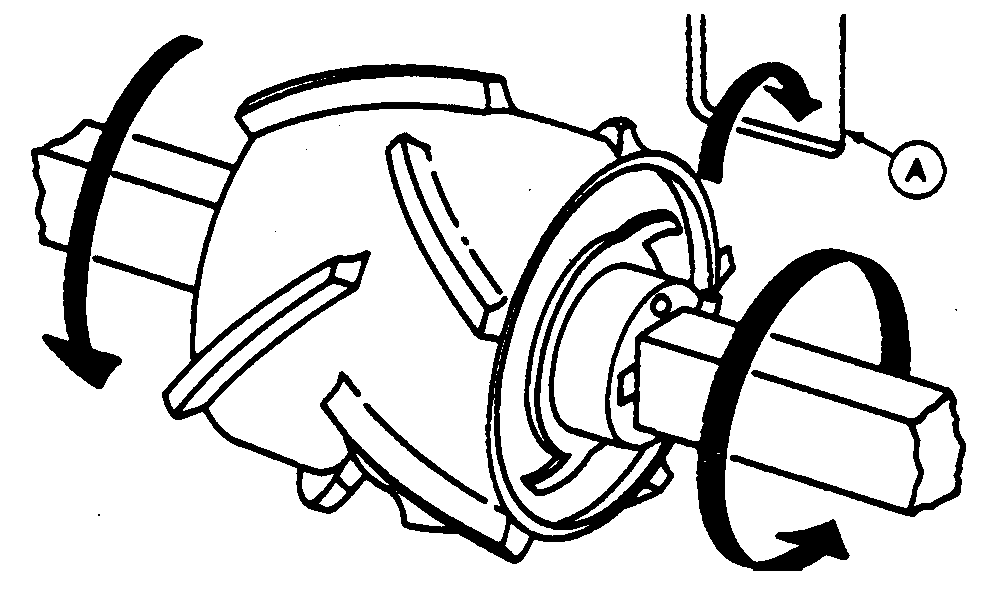

4. Align wheels with discharge hole (A) and install shaft.
A-Discharge Hole
AG,OUO1074,556 -19-22FEB00-2/2
