Positioning Seed Boots

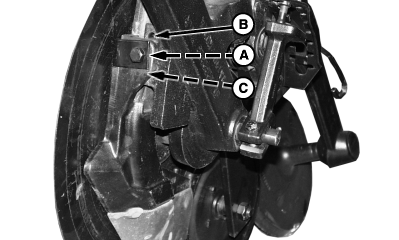

Seed Boots are attached at center hole (A) (as shown) for most planting conditions.

Boot can be attached at top hole (B) to:

  • Compensate for disk opener wear.
  • Minimize boot wear when deep seeding.

Boot can be attached to bottom hole (C) when:

  • Shallow seeding at 25 mm (1 in.) or less.
  • Planting in heavy-residue conditions.
  • Worn boot is used with new condition disk opener.
  • Higher speed planting causes inconsistent seed depth.
N55709


A-Center Hole
B-Top Hole
C-Bottom Hole

OUO6074,0000165 -19-05DEC00-1/2

After repositioning boots, make sure leaf spring (A) is locked into position below boot attaching cap screw and above boot stop.

Leaf spring keeps seed boot against inside of disk opener for accurate seed placement.


A-Leaf Spring

N49818

Leaf Spring Location

OUO6074,0000165 -19-05DEC00-2/2
