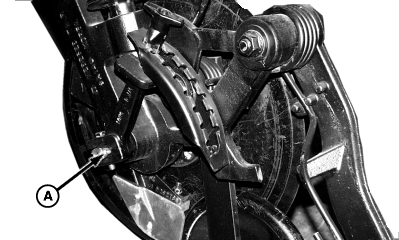

At the end of each season or once a year, apply ten pumps of grease to each opener depth gauge arm lubrication point (A). Cycle depth gauge arm fully each direction.
A-Lubrication Point
OUO6074,0000176 -19-11DEC00-1/1
