Setting Electronic Grain Shifter

IMPORTANT: Prevent moving parts from seizing. Proper lubrication before and after planting season is essential for smooth and accurate response from rate adjuster. See Lubrication section.

IMPORTANT: The seed rate charts are only approximate kilograms per hectare (pounds per acre). Set the shifter higher or lower after referring to USING DENSITY METER and rate checks in this section.

1. Select desired population and corresponding index number, for the crop being planted, from the rate charts.

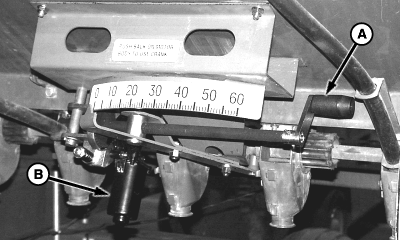

NOTE: Motor (B) MUST be pushed back before turning hand crank (A) manually.

2. Set rate adjuster to corresponding number on rate chart either with electronic hand controller (C) or with hand crank (A).

A-Crank
B-Motor
C-Controller

OUO6074,0000479 -19-01NOV01-1/1
