Meter Components

IMPORTANT: Clean and lubricate all meter components at end of planting season.

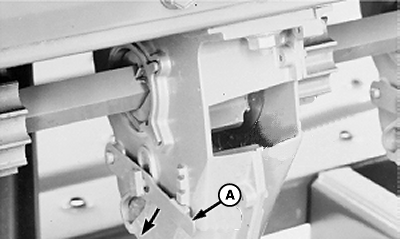

1. Move latch (A) on each feed cup downward off retaining teeth to open feed gate and empty feed cup.

A-Latch

OUO6074,000047A -19-02NOV01-1/3

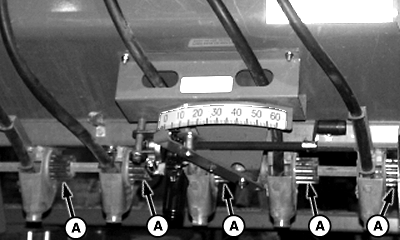

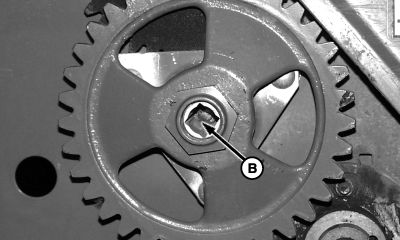

2. Clean and lubricate all fluted meter rolls (A) with light spray lubricant. Lubricate meter shaft (B) where it passes through hole in drive gear, located behind end panel access door, with light spray lubricant.

A-Meter Rolls
B-Shaft

OUO6074,000047A -19-02NOV01-2/3

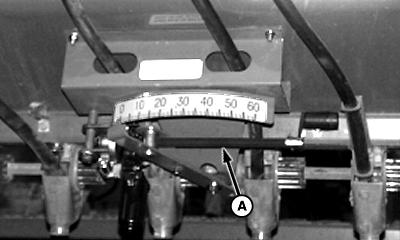

3. If equipped, lightly lubricate threaded shaft (A) on electronic rate adjuster.

4. Cycle rate adjuster full range to distribute lubricant.

A-Shaft
